GXF402-T

1. Product Introduction

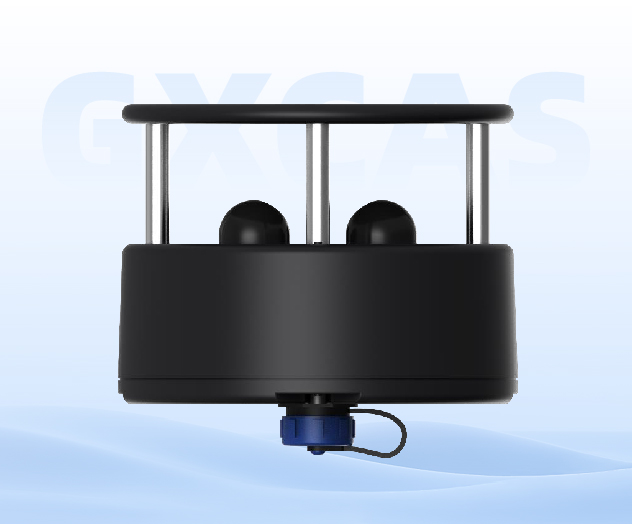

The GXF402 series ultrasonic anemometer is a five in one digital environmental detection device. It can accurately measure environmental wind speed, direction, temperature, humidity, and atmospheric pressure. Adopting advanced ultrasonic measurement technology, supporting MODBUS protocol, digital result output, supporting RS485, RS232 or TTL/CMOS UART interfaces. Allow 6V to 30V wide voltage supply input. Suitable for meteorological observation, environmental monitoring, industrial control environmental monitoring and other fields. It is a new generation of IoT based multifunctional environmental sensor.

2. Functional features
The GXF402 series offers three models of products, namely GXF402-R, GXF402-T, and GXF402-U. The difference between this series of products lies in the different interface types, which facilitate applications in different situations.

3. Product Description

Installation instructions for bracket

Four M2.5 nuts are pre embedded at the bottom of this product, which can be used to secure it to external brackets. The recommended length for rotating the external M2.5 screw into the embedded nut is not less than 4mm and not more than 5mm. The distance between each embedded nut and the center is 40mm
Be careful not to confuse the installation and removal of the bracket with the bottom cover fixing screws (4 black hexagonal M2.5 screws).
The anemometer bracket designed by the customer should not obstruct the temperature and humidity measurement port.
